Virgin PTFE sheet , PTFE Molded sheet and PTFE Skived sheet

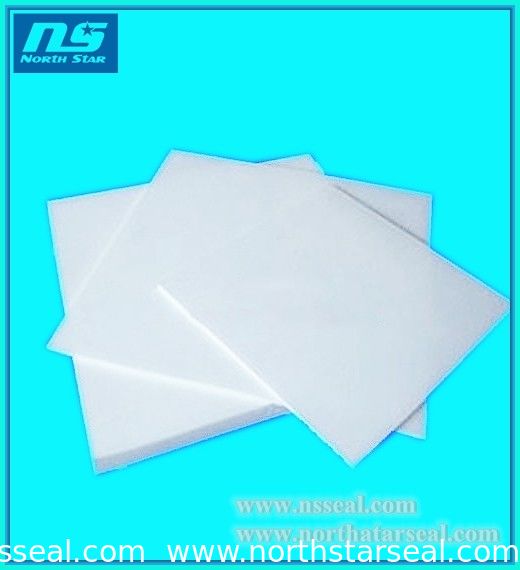

: Large Image : Virgin PTFE sheet , PTFE Molded sheet and PTFE Skived sheet

Product Details:

Place of Origin:	China
Brand Name:	North Star & OEM
Certification:	CE & SGS
Model Number:	NSPS-1

Payment & Shipping Terms:

Minimum Order Quantity:	300kgs
Price:	USD 10-20 / KG
Packaging Details:	WOODEN
Delivery Time:	2-25DAYS
Payment Terms:	T/T AND L/C
Supply Ability:	5TON PER WEEK

Contact Now

Detailed Product Description

PTFE sheet

Skived Sheet

Min Thickness=0.1mm, Max Thickness=0.5mm, Max Width= 1.2m

Min Thickness=0.5mm, Max Thickness=6mm, Max Width= 2.7m

Molded Sheet

Min Thickness=2mm, Max Thickness=100mm, Min Dimension=300x300mm, Max Dimension= 2000x2000mm

PS : 1 .Size can be made based on customers' detailed requirement.

2.Also can be fill in glass fiber , carbon, Graphite ,bronze

Applications

Gaskets ,seals electrical insulation ,bridge bearing slider , lining shelves

Technical Data

Technical Parameters:
Density:	2.1-2.3g/cm3
Tensile Strength	≥15Mpa
Temperature	-180℃-260℃
Pressure (Mpa)	4.0Mpa
Elongation	≥150
Electrolytic Strength(kv/mm)	10
