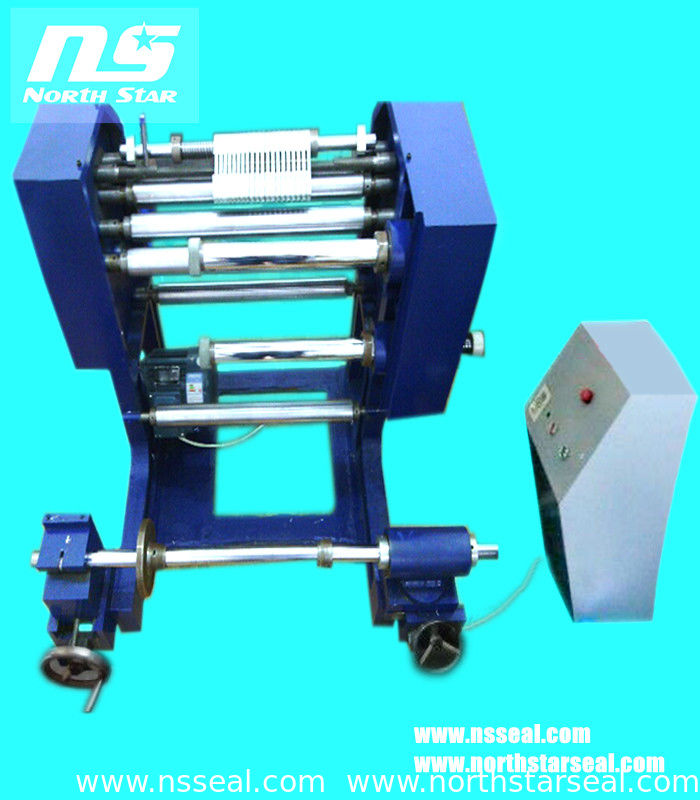

PTFE Tape Slitting machine ( Cold cutting )
Type : NS-SL350
Technical data
| Jumbo roll Valid width: | 50mm -500mm |
| Max. Diameter of Received roll: | 250mm |
| Inner diameter of Jumbo roll Pvc core | 9cm |
| Inner diameter of Received core | 40mm |
| Slitting Speed | 0-180m/min |
| Machine Size | 1250mm x900mm x 900mm |
| Machine Weight : | 450kgs |
| Electro motor Voltage | 380V/50HZ |
| Electromotor Power | 0.75kw |
| Input voltage | 220V/50HZ |
| Capacity/ Each Day (8hours) | 80-150kg |
Feature
Operating is easy .More Balance shaft and accessory shaft ,Let slitting tape is very trim .
Good pressing shaft avoid tape is break on machine working.
